IKEA SKÅDIS vs. Standard 1/4-Inch Pegboard: Compatibility and Measuring Guide
IKEA SKÅDIS and standard 1/4-inch pegboard are both useful ways to organize a wall, desk or workspace—but they are not the same mounting system. SKÅDIS uses vertical oblong slots and its own attachment geometry. A conventional 1/4-inch pegboard normally uses round holes arranged on a square grid.
That difference matters. An organizer may look suitable for both systems while using a different connector for each one. Choosing by appearance alone can lead to a loose fit, a connector that will not enter the board or an accessory that sits at the wrong angle.
This guide explains how to identify and measure your board, understand the common specifications, select the correct MakersFind option and troubleshoot a fit problem without guessing.
Important: Specifications can vary by brand and production batch. Measure your actual board before ordering.
Table of contents
- Quick answer
- What each pegboard system is
- SKÅDIS vs. 1/4-inch pegboard comparison
- How to identify your pegboard
- How to measure IKEA SKÅDIS or a SKÅDIS-style board
- How to measure a standard 1/4-inch pegboard
- Which MakersFind Pegboard Type should you choose?
- Buying checklist
- What to check if your accessory does not fit
- Frequently asked questions
Quick answer
- Vertical oblong slots: choose the IKEA SKÅDIS option only when you own an official IKEA SKÅDIS board. If you have a look-alike slotted board, contact MakersFind before ordering.
- Round holes in a regular grid: you probably have a conventional pegboard. Measure the hole diameter, center-to-center spacing and panel thickness.
- Round-hole metal panel no thicker than 1.2 mm (0.047 in): choose 1/4-inch metal pegboard — panel ≤ 1.2 mm, after confirming the hole pattern.
- Round-hole wood, hardboard or MDF panel no thicker than 6.35 mm (0.25 in): choose 1/4-inch wood/MDF pegboard — panel ≤ 6.35 mm, after confirming the hole pattern.
- Anything else: do not force the connector. Send MakersFind the board brand, photos and measurements.
The metal and wood/MDF limits above are MakersFind product-fit categories, not universal definitions for every pegboard on the market.
What each pegboard system is
IKEA SKÅDIS
SKÅDIS is IKEA's modular storage system. Official IKEA product information identifies the pegboard as painted or clear-lacquered fiberboard and describes accessories that attach to the board and can be repositioned. The front of the board is easy to recognize by its repeating vertical oblong slots, rather than round holes.
The slot shape is the first and most useful identifier. It also means that a connector made for round-hole pegboard should not be assumed to fit SKÅDIS.
IKEA publishes overall board sizes, materials and installation documentation, but the official product pages reviewed for this guide do not provide a technical drawing with slot width, slot height and center-to-center pitch. For an official IKEA board, select the SKÅDIS version. For a third-party “SKÅDIS-style” board, measure the actual slots and spacing instead of assuming that the geometry is identical.
Standard 1/4-inch pegboard
A conventional 1/4-inch pegboard has round holes. A commonly used pattern is:
- nominal 1/4-inch holes;
- 1-inch (25.4 mm) center-to-center spacing horizontally; and
- 1-inch (25.4 mm) center-to-center spacing vertically.
Several manufacturers publish this combination. For example, DEWALT describes 1/4-inch-diameter holes on 1-inch centers for a steel panel, while Triton specifies 1/4-inch holes on 1-inch centers for its DuraBoard products.
However, “1/4 inch” is a nominal product class, not a promise that every board is geometrically identical. Panel Processing lists 9/32 inch as the actual diameter for one of its nominal 1/4-inch hole standards, and it offers multiple center patterns. Board thickness, formed metal edges, surface coatings and rear clearance can also differ.
Specifications can vary by brand and production batch. Measure your actual board before ordering.

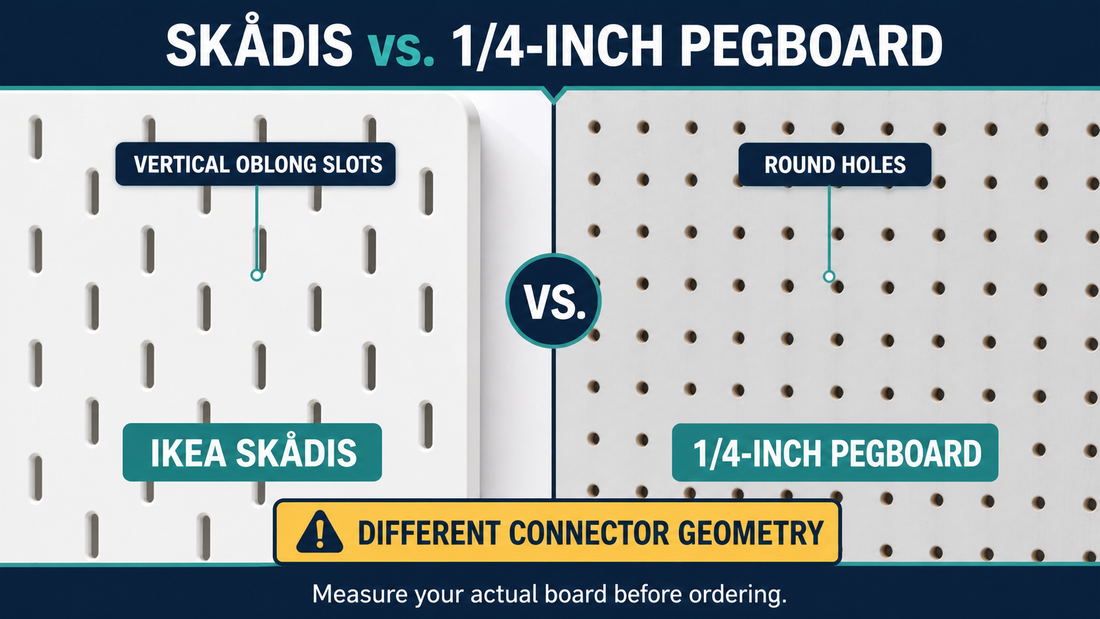

SKÅDIS vs. 1/4-inch pegboard comparison
| Feature | IKEA SKÅDIS | Conventional 1/4-inch pegboard |
|---|---|---|
| Opening shape | Vertical oblong slots | Round holes |
| System type | IKEA-specific mounting geometry | Common round-hole pegboard category |
| Published common pattern | IKEA does not publish detailed slot pitch on the product pages reviewed | Commonly nominal 1/4-inch holes on 1-inch centers |
| Possible material | IKEA lists fiberboard with paint or clear acrylic lacquer | Metal, hardboard, HDF, MDF, plastic and other materials |
| Thickness selection for MakersFind | Choose the IKEA SKÅDIS option for an official board | Choose the MakersFind metal or wood/MDF version according to measured panel thickness |
| Cross-compatibility | Do not assume round-hole accessories fit | Do not assume SKÅDIS connectors fit |
| Best verification | Confirm official IKEA SKÅDIS or measure a look-alike board | Measure hole diameter, horizontal and vertical pitch, and panel thickness |
The phrase “standard 1/4-inch pegboard” is useful shorthand, but no single label guarantees every dimension. A board can have round 1/4-inch-class holes yet differ in thickness, spacing or rear construction.
How to identify your pegboard
Start with the opening shape:
- Look straight at the front of the board.
- If you see narrow, vertical oblong slots, check whether the board is an official IKEA SKÅDIS product.
- If you see round holes, treat it as a conventional pegboard candidate and measure it.
- If the panel mixes slots and round holes, has keyhole shapes, square holes or proprietary rails, do not select either option based only on the words “pegboard” or “tool board.”
Next, find the brand or model number. A receipt, label, instruction sheet or product page can help, but the physical measurements should be the final check when the brand specification is incomplete.
Color does not identify the system. White, black, wood-tone and metal boards can use different attachment geometries.
IKEA SKÅDIS Measurement.
IKEA SKÅDIS pegboard dimensions are standard, so you don't need to measure them yourself. However, if you're making your own accessories, you can refer to the following dimensions:
If your board is an official IKEA SKÅDIS product, the simplest route is to select IKEA SKÅDIS. If it is a third-party slotted board, use a digital caliper or a millimeter ruler and record:
- Slot width: measure the clear internal opening from left edge to right edge at its widest point.
- Slot height: measure the clear internal opening from top edge to bottom edge.
- Horizontal center spacing: measure from the center of one slot to the center of the corresponding slot beside it.
- Vertical center spacing: measure from the center of one slot to the center of the next corresponding slot above or below it.
- Panel thickness: measure the actual board at an exposed edge, not the wall rail, frame or packaging dimension.
- Front and back: photograph both sides because edge profiles and rear clearances can affect a connector.
For better accuracy, measure across several repeated slots. For example, measure from the center of the first slot to the center of the fifth slot and divide by four intervals. This reduces the effect of a small ruler-placement error.
Do not use third-party SKÅDIS measurements as proof that every look-alike board will fit. Similar slot shapes can hide meaningful differences in pitch, thickness and rear geometry.
How to measure a standard 1/4-inch pegboard
You need three separate measurements: hole diameter, center-to-center spacing and panel thickness. They describe different parts of the board.
Hole diameter
Use a digital caliper if possible:
- Place the inside-measuring jaws against opposite inner edges of one clean, undamaged hole.
- Measure in both the horizontal and vertical directions.
- Record the smallest clear opening if paint or powder coating has reduced the usable diameter.
A nominal 1/4 inch equals 6.35 mm, but some products sold in the nominal 1/4-inch category use a slightly larger actual opening, such as 9/32 inch (about 7.14 mm). This is one reason to record the real opening rather than relying only on a product name.
Center-to-center spacing
“On center” means from the center of one hole to the center of the next—not from the near edge of one hole to the near edge of another.
You can measure it in either of these ways:
- Measure from the center of one hole to the center of the adjacent hole.
- Measure from the same edge of one hole to the same edge of the next hole. For equal-size holes, this gives the same pitch and is often easier with a ruler.
The simplest way to measure the center-to-center distance between two circles is to measure from the left tangent point of one to the left tangent point of the other. The center-to-center hole spacing on a standard 1/4-inch pegboard is 1 inch (25.4mm)
Panel thickness
Panel thickness is not the same as hole diameter:
- Find an exposed outer edge or a clean cutout in the panel.
- Use the outside jaws of a caliper.
- Measure only the board material—not a folded metal flange, wall spacer, frame, mounting rail or gap behind the board.
- Check more than one point if the board has a coating or appears uneven.
Metal panels can be thin sheet with formed edges. Wood, hardboard and MDF panels are usually thicker. That difference changes how a retaining connector passes through and grips the board, which is why MakersFind separates the two fit options.
Also make sure there is enough clearance behind the panel for the accessory's connector. A correctly measured hole pattern can still be unusable if the board is mounted flush against a wall with no rear space.
It is worth noting that for metal pegboards, there is usually a folded edge thickness. Because of this, what we need to measure is the thickness around the panel holes, which typically does not exceed 2 millimeters / 0.08inch.
Which MakersFind Pegboard Type should you choose?
Use this table only after identifying the opening shape and measuring the board:
| MakersFind option | Select it when | Do not select it when |
|---|---|---|
| IKEA SKÅDIS | You have an official IKEA SKÅDIS board with vertical oblong slots | You have round holes or an unverified third-party slotted board |
| 1/4-inch metal pegboard — panel ≤ 1.2 mm | You have a compatible round-hole metal panel and the measured sheet thickness is no more than 1.2 mm | The panel exceeds 1.2 mm, uses proprietary slots or has an incompatible hole pattern |
| 1/4-inch wood/MDF pegboard — panel ≤ 6.35 mm | You have a compatible round-hole wood, hardboard, HDF or MDF panel and the measured thickness is no more than 6.35 mm | The panel exceeds 6.35 mm or the hole pattern does not match |
These are MakersFind's current attachment options. The limits describe which connector version to select; they do not certify every board of that material.
If your board is near the stated limit, has heavy paint buildup, uses recessed holes, includes a folded metal lip or does not match the common round-hole grid, contact MakersFind before ordering.
Buying checklist
Before adding a pegboard accessory to your cart:
- Confirm whether the openings are vertical slots or round holes.
- Record the board brand and model, if available.
- Measure hole or slot size.
- Measure horizontal and vertical center spacing.
- Measure the panel itself at an exposed edge.
- Confirm the rear clearance behind the board.
- Choose the Pegboard Type on the product page.
- Check the device or product model required by the selected accessory.
- Read “What's included” so you know whether the listing contains one selected holder, a set or mounting clips.
If you are building a setup, begin with the fit guide and then browse the relevant collection:
- pegboard accessories by system
- gaming setup organizers
- Nintendo Switch pegboard storage
- desk and tech organization
- sewing and craft organization
- sewing and quilting storage
- camera and creator gear
What to check if your accessory does not fit
Do not force the connector, sand it or permanently alter it before completing these checks.
1. Confirm the board family
- Vertical oblong slots normally indicate SKÅDIS or another slotted system.
- Round holes indicate a conventional pegboard candidate.
- Mixed slots and holes can belong to a proprietary metal tool-board system.
2. Recheck the selected version
Compare the order confirmation or packing label with the product page:
- IKEA SKÅDIS
- 1/4-inch metal pegboard — panel ≤ 1.2 mm
- 1/4-inch wood/MDF pegboard — panel ≤ 6.35 mm
3. Measure again
Provide:
- slot width and height, or round-hole diameter;
- horizontal and vertical center-to-center spacing;
- panel thickness at the actual sheet;
- rear clearance behind the board.
4. Check installation direction
Confirm the board is upright and the accessory is not upside down. Review the product photos or supplied instructions. Some connectors insert at an angle before rotating or pressing into their final position.
5. Inspect for obstructions
Look for excess paint, bent metal, damaged holes, a wall directly behind the opening or a mounting rail that blocks the connector.
6. Contact MakersFind with evidence
Send:
- the order number;
- product and selected option;
- pegboard brand/model;
- one full front photo;
- one close-up of the holes or slots with a ruler;
- one edge photo showing panel thickness;
- a short photo or video showing where the fit stops.
MakersFind can then compare the ordered connector with the board geometry and advise whether you need a different version or further support.
Frequently asked questions
Can IKEA SKÅDIS accessories be used on a regular 1/4-inch pegboard?
Usually not. SKÅDIS uses vertical oblong slots, while a conventional 1/4-inch pegboard uses round holes. The connectors are designed around different opening shapes and panel geometry. Choose the version made for your board.
Can standard 1/4-inch pegboard accessories be used on IKEA SKÅDIS?
Do not assume they can. A round-hole hook or retaining clip is not automatically compatible with SKÅDIS slots. Use an accessory or adapter specifically designed and tested for SKÅDIS.
Does “1/4 inch” mean the hole diameter or the board thickness?
It can be ambiguous. In accessory compatibility, “1/4-inch pegboard” commonly refers to the nominal round-hole system. Some product listings also use 1/4 inch to describe panel thickness. Hole diameter and panel thickness are separate measurements, so verify both.
Are all 1/4-inch pegboard holes exactly 0.25 inch?
No. Some manufacturers publish 1/4-inch actual holes, while others describe 9/32-inch openings as nominal 1/4-inch holes. Coatings and production tolerances can also affect the clear opening. Measure your board.
What is the usual spacing for standard 1/4-inch pegboard?
A common pattern is 1 inch (25.4 mm) on center horizontally and vertically. Other patterns exist, so do not treat the common dimension as universal.
How do I measure center-to-center spacing?
Measure from the center of one hole to the center of the next. You can also measure from the same edge of one hole to the same edge of the next. For greater accuracy, measure across several intervals and divide by the number of intervals.
Why does MakersFind offer different versions for metal and wood/MDF pegboards?
The panel thickness and edge geometry affect how the connector enters and retains the accessory. MakersFind's metal option supports compatible panels up to 1.2 mm thick, while the wood/MDF option supports compatible panels up to 6.35 mm thick. Hole pattern must also be compatible.
What if my metal pegboard is thicker than 1.2 mm?
Do not order the ≤1.2 mm version based only on the material. Send MakersFind the brand, model, hole measurements, sheet thickness and photos for review.
What if my wood or MDF board is thinner than 6.35 mm?
The ≤6.35 mm limit is a maximum, not proof of fit. Confirm the hole diameter, center spacing, rear clearance and product instructions as well.
My board brand says “standard,” but the measurements are different. Which should I trust?
Use the physical measurements. “Standard” can be a marketing description rather than a complete engineering specification. Specifications can vary by brand and production batch. Measure your actual board before ordering.
How can I identify a genuine IKEA SKÅDIS board?
Check the IKEA product label, receipt, article number or official product documentation. Vertical slots alone do not prove that a third-party board uses identical dimensions.
What information should I send MakersFind if I am unsure?
Send the board brand/model, opening shape, hole or slot measurements, horizontal and vertical center spacing, panel thickness, rear clearance and clear front/edge photos. Also include the product you want to buy and the device model it will hold.
The right fit starts with the board
SKÅDIS and 1/4-inch pegboard can support similar organization goals, but they do not use the same attachment geometry. Identify the opening shape first, measure the actual board and then choose the corresponding MakersFind Pegboard Type.
Once the fit is confirmed, you can build around the way you create, play and work—whether that means a cleaner gaming setup, accessible Nintendo Switch storage, a more efficient desk or organized sewing and craft tools.
Still unsure? Contact MakersFind before ordering and include your measurements and photos. A short compatibility check is easier than correcting a forced or damaged installation.
